9. Flowcharts Study or not

In flowcharts, these comparison operators are used in decision shapes (diamonds) to test conditions that lead to different branches (Yes/No).

Operator	Meaning	Example Sentence
=	Equal to	If score = 100, print “Perfect!”
!=	Not equal to	If color != “red”, change to “blue”.
>	Greater than	If speed > 60, show “Slow down!”
<	Less than	If age < 18, deny access.
>=	Greater than or equal to	If temperature >= 30, turn on fan.
<=	Less than or equal to	If hours <= 8, allow break.

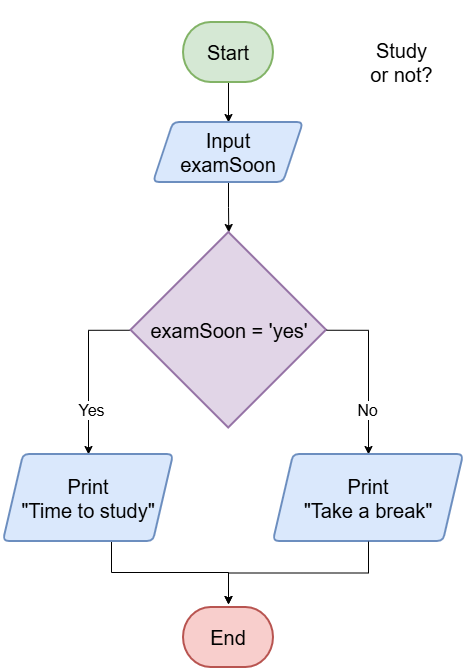

The pseudocode below checks to see whether a it is time to study for an exam or not.

ALGORITHM studyOrNot ()

BEGIN
    INPUT examSoon
    IF examSoon = 'yes' THEN
        PRINT "Time to study."
    ELSE
        PRINT "Take a break."
    ENDIF
END

Tasks

In the pseudocode above what is the comparison operator that is used to test equality?

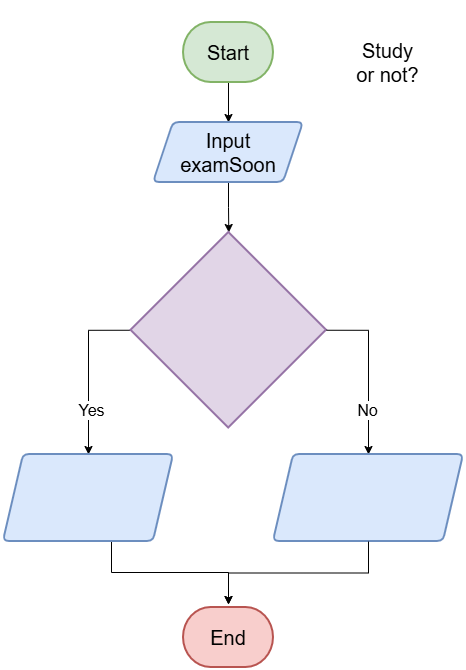

Use the pseudocode to add the missing text to the flowchart.
